PET PBT paint brush filament extruder machine
PET/PBT paint brush bristle is used widely both in industrial and civil area. According to different requirements, our machine line can make both straight filament and crimped filament. Filament diameter is also customized. The filament produced by our machine line is with good characteristics, such as brilliant and glossy, color customization available upon clients request.
+86 15063002011
WhatsApp: +86 15063002011
info@zyamachine.com
Send E-mail
Machine Features:

PET/PBT paint brush bristle is used widely both in industrial and civil area. According to different requirements, our machine line can make both straight filament and crimped filament. Filament diameter is also customized. The filament produced by our machine line is with good characteristics, such as brilliant and glossy, color customization available upon clients request. Excellent bend recovery is acquired after the heat setting process. Optional in the shape of cross-section, like round, cross, square, cinquefoil, triangle, hollow etc. Easy tapering. Our machine line can use recycled PET bottle flakes as raw material, cost is reduced while quality is nearly as good as the virgin one.

Machine Models and Configuration:


ModelZYLS-70ZYLS-80
Screw L/D30:130:1
Gearbox model200200
Main motor22kw30kw
Capacity (kgs/h)40-60kgs/h70-80kgs/h
Mould Dia.200200
Filament Dia.0.05-0.2mm0.05-0.2mm

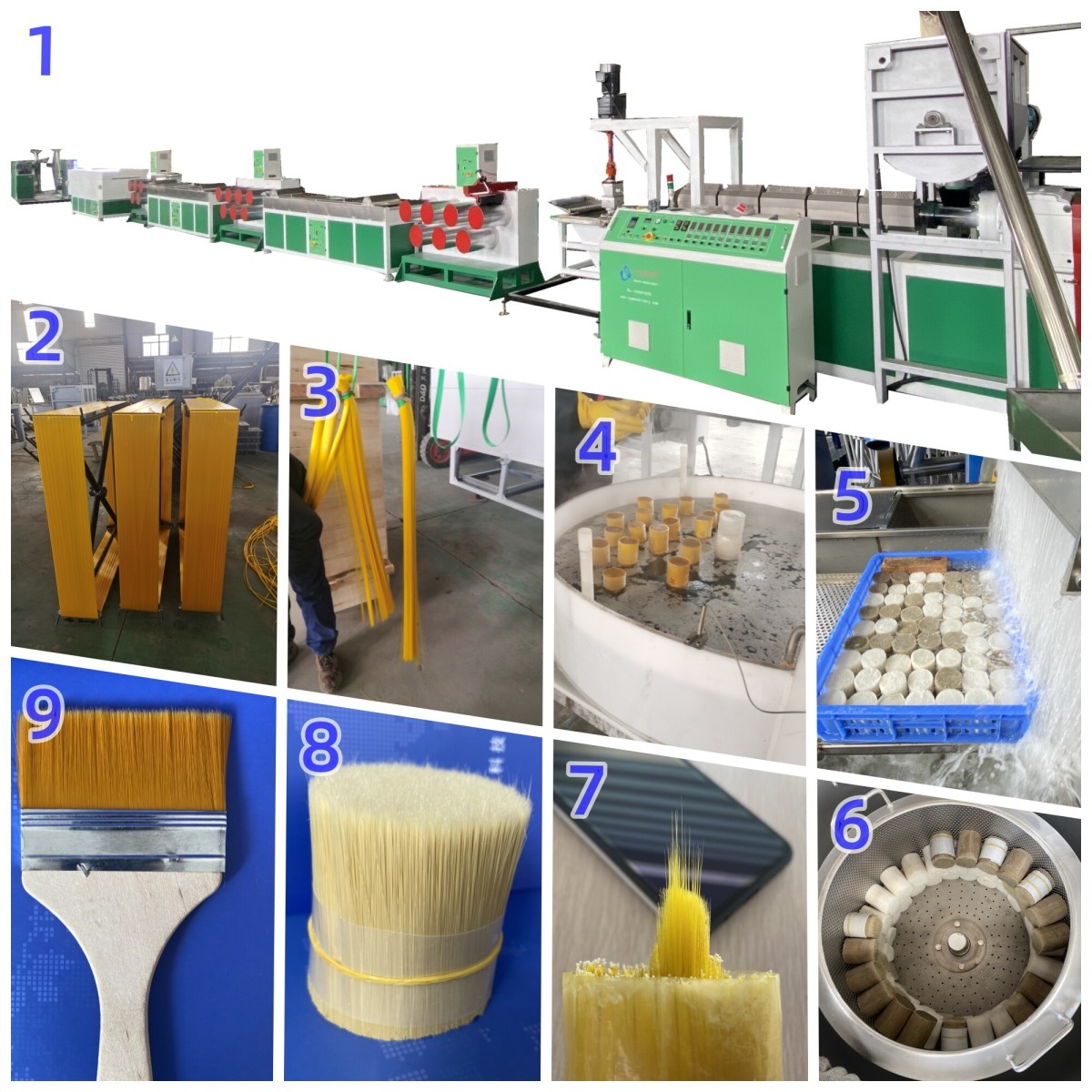

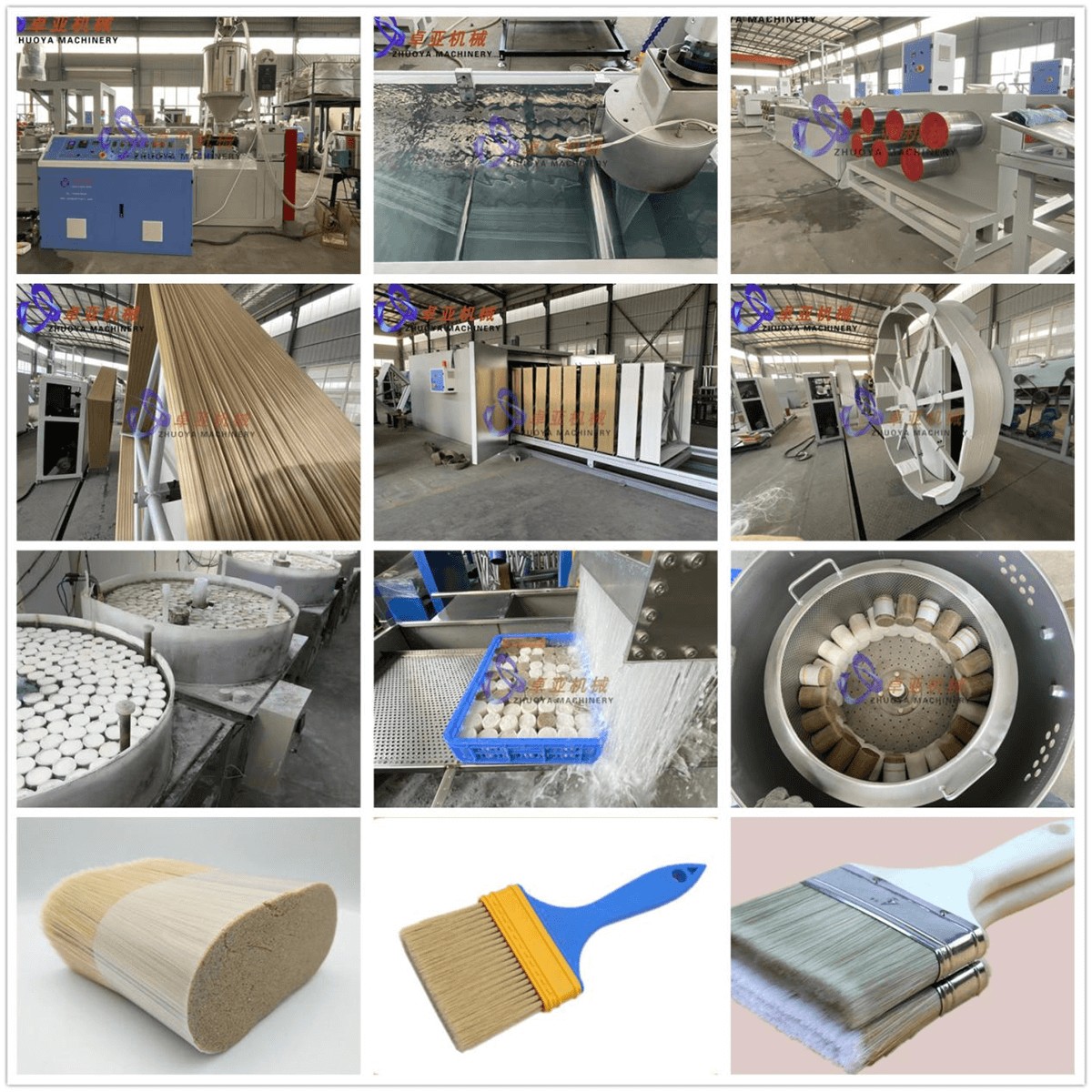

Machine Configuration
No.Machine Name
1Single screw extruder
2Die head + spinnerets
3Water trough calibration system
4Tensile unit
5Hot water tank
6Tensile unit
7Hot water tank
8Tensile unit
9Oil coating machine
10Heating oven
11Winding machine

Application:

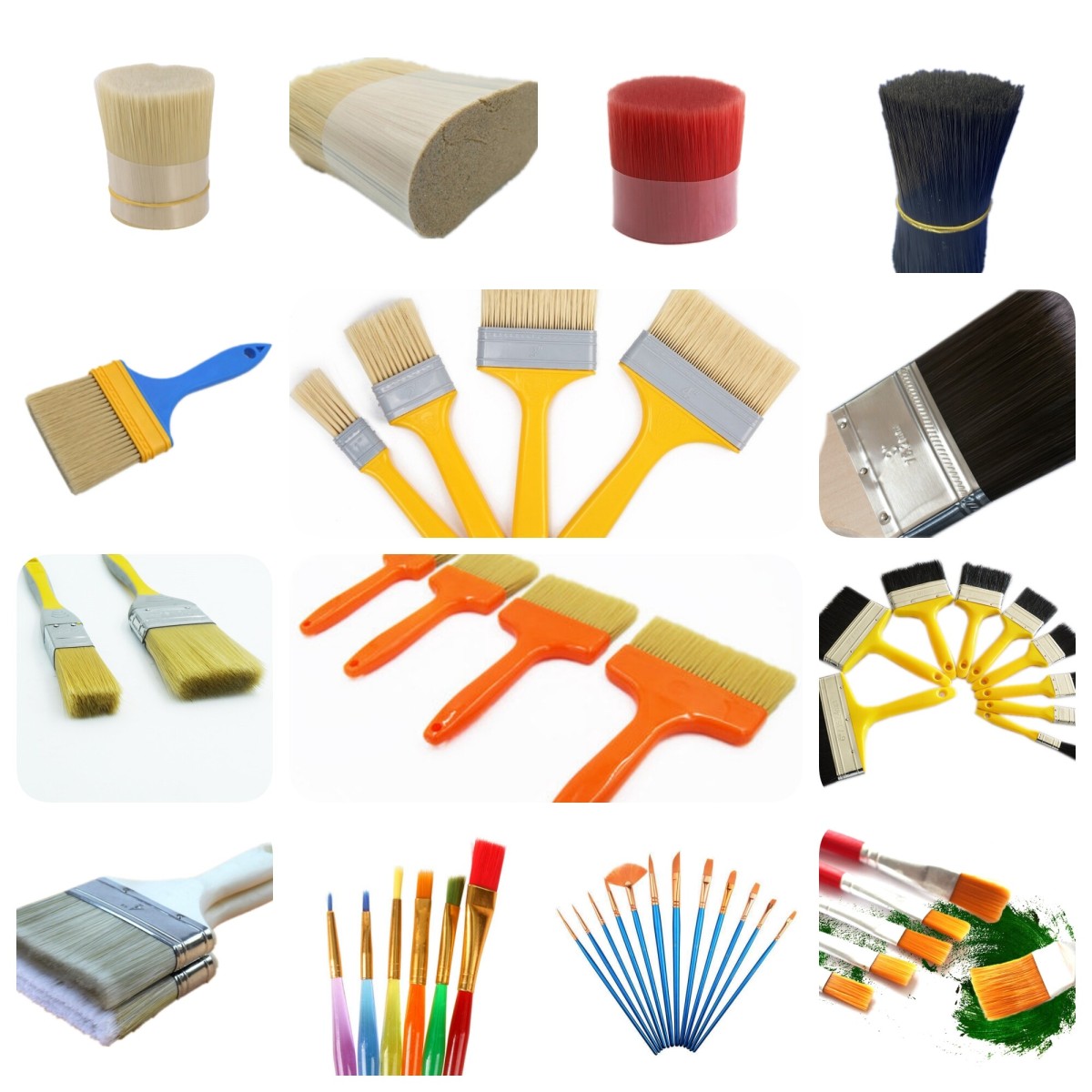

Paint brush, painting brush, coating brush, Artist brush for industrial and civil use



Manufacturer Advantages:


1.20-years experience for plastic filament extruder machine study and improvement

2. 80% domestic market share and countless feedback from customers

3. Industry leading technology and formula support for production

4. One-stop service system to make clients rest assured

5. Successful client production line plant case with good reputation

6. Top quality paint brush fiber assurance
