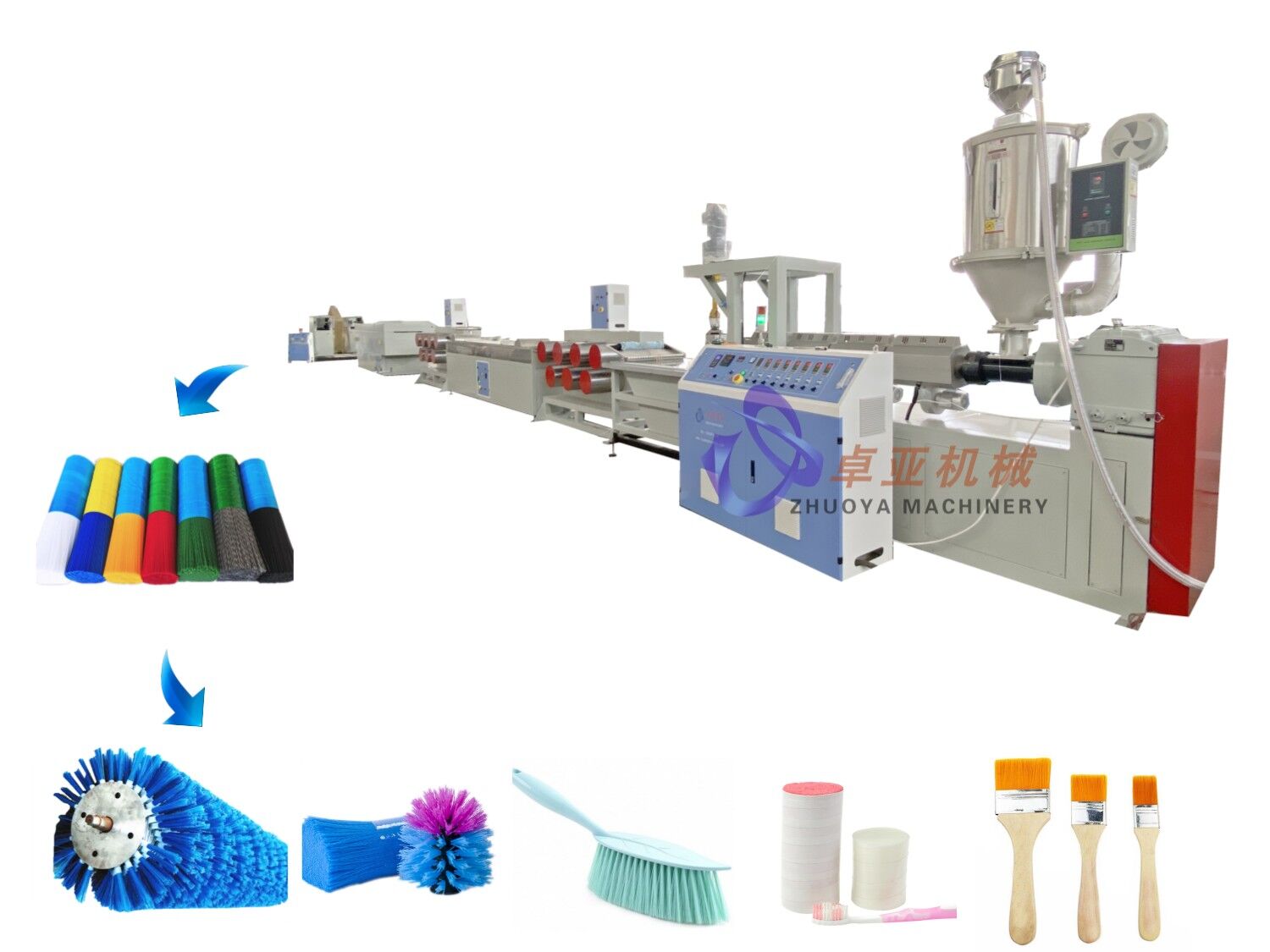

PET PP brush filament extruder machine
PET PP brush filament extruder machine can produce high-quality brush filament with shining color, excellent flexilibility and resilience, very good durability and resistance to oxidation from PET, PP and PE etc.
The raw material can be 100% recycled PET water bottle flakes, which is green and environmentally friendly, or PP/PE/PA.
+86 15063002011
WhatsApp: +86 15063002011
info@zyamachine.com
Send E-mail
Machine Features:

PET PP brush filament extruder machine can produce high-quality brush filament with shining color, excellent flexilibility and resilience, very good durability and resistance to oxidation from PET, PP and PE etc.

The raw material can be 100% recycled PET water bottle flakes, which is green and environmentally friendly, or PP/PE/PA.

The filament could be straight, crimped, solid, hollow, flaggable, non-flaggable, round, trangle, zigzag or other shapes with our mature technology support.



Machine Models:


ModelZYLS-75ZYLS-80ZYLS-90
Screw L/D30:130:130:1
Gearbox model200225225
Main motor22kw30kw37kw
Capacity(kg/h)80-100kg100-120kg150-170kg
Mould Dia.200200200
Filament Dia.0.1mm-3mm0.1mm-3mm0.1mm-3mm

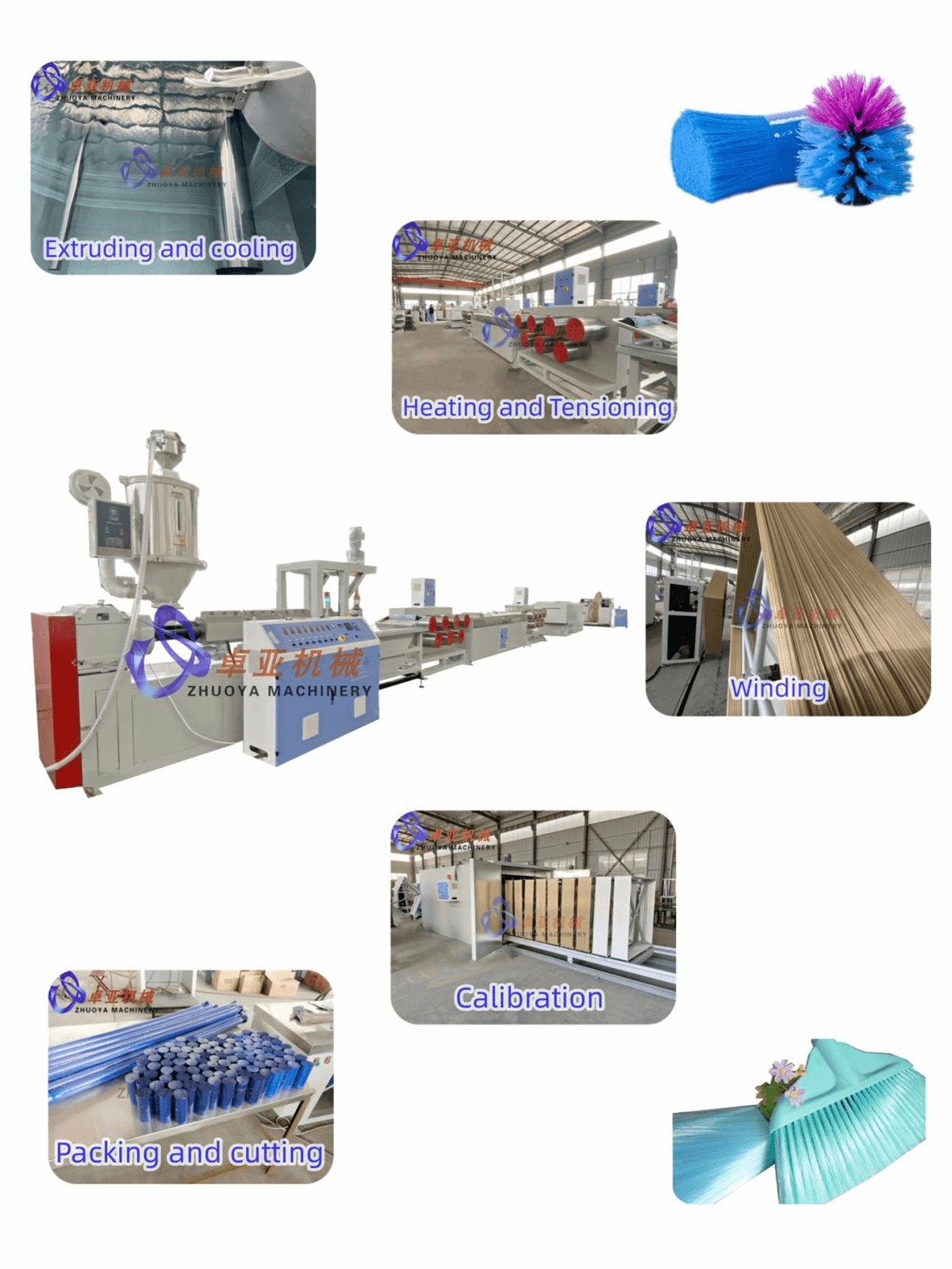

Equipment Configuration:


No.Name Qty.
1SJ75/SJ80/SJ90 single screw extruder1 set
2Die head+mould1 set
3Water-cooling tank1 set
4First tensile machine1 set
5Pre-heating machine1 set
6Second tensile machine1set
7Third tensile machine1 set
8Oil bath tank 1 set
9Pneumatic tensioner1 set
10Winder1 set
Electrical
 1) Main motor frequency controller: ABB 2) Temperature controller: OMRON 3) AC contactor: SIEMENS 4) Thermal overload relay: SIEMENS

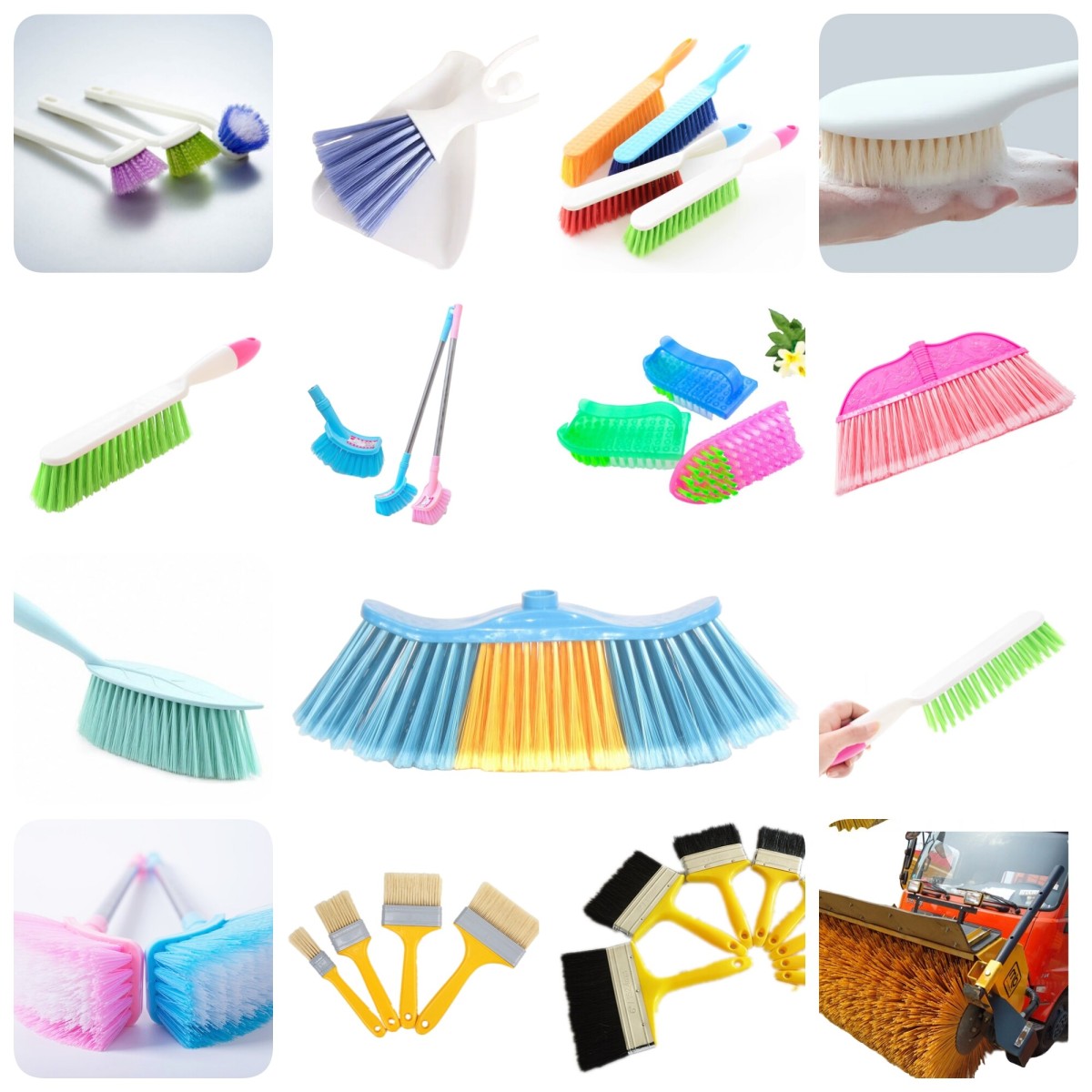

Application:


Floor cleaning brush, tableware brush, clothes cleaning brush, car cleaning brush, fruit&vegetable cleaning brush, shoe cleaning brush, milk bottle brush, chimney cleaning brush, polish brush, toilet brush, snow sweeper brush etc.



Manufacturer Advantages:


1.20-years experience for plastic filament extruder machine study and improvement

2.80% domestic market share and countless feedback from customers

3.Zero scrap

4.Low cost material and high market competitiveness

5.Comprehensive service system to assure production line running smoothly

6.Mature sales team and oversea engineer service

7.24 hours online service to solve all your questions
